SCI (Slaughter) 266 – Ground Bond Tester (60A)
Applications include:
- Appliances
- Industrial equipment
- Medical equipment
- Laboratory equipment
- Water pumps

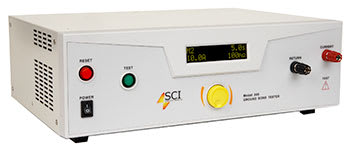

The SCI (Slaughter) 266 is a ground bond tester with an output rating of 60A.
The 266 features an intuitive interface which allows you to set-up a test in seconds. And with practical security settings, it can easily be deployed in both laboratory and production line environments.
SCI offers two models in its 260 series of ground bond testers, providing the output current you need to satisfy NRTL specifications.
The 266 can also be customized for your specific requirements and application. Three options are available, as can be seen in the chart below. These options can also be found in the accessories section of this page.
| Description | 264 | 266 |
| Rear Outputs | ● | ● |
| USB Port | ● | ● |
| Display Voltage Drop | ● | ● |
| Input specifications | |
| Voltage | 100 – 240 VAC ± 10% Full Range |
| Frequency | 50/60 Hz ± 5% |
| Fuse | 12 A, 250 VAC Slow Blow |
| Ground Bond Test Mode | |
| Output rating | Range: 3.0 to 60.0 AAC Resolution: 0.1 A Accuracy: ± (2% of setting + 0.1A) Voltage: 12 VAC (fixed) |
| Output frequency | 50/60 Hz user selectable Accuracy: ± 0.1% |
| Resistance Limit Settings | 0 – 150 mΩ for 30.1 – 60.0 A 0 – 200 mΩ for 15.1 – 30.0 A 0 – 600 mΩ for 3.0 – 15.0 A Resolution: 1 mΩ Accuracy: ± (2% of setting + 2 mΩ) |
| Offset Limit Settings | 0 – 100 mΩ Resolution: 1 mΩ Accuracy: ± (2% of setting + 2 mΩ) |
| Dwell Timer | 0, 0.5 – 240.0 sec, (0=continuous), 0.1 sec/step |
| Ramp Timer | 0.1 sec, fixed |
| Measurement Current | 0.0 – 60.0 AAC Resolution: 0.1 A Accuracy: ± (3% of reading + 0.1 A) |
| Ohmmeter | 0 – 600 mΩ Resolution: 1 mΩ Accuracy: ± (3% of reading + 3 mΩ) for 3 – 5.9 A ± (2% of reading + 2 mΩ) for 6 – 60 A |
| General specifications | |
| Standard Accessories | 60 Amp High Current Lead 6 ft. (1.8m) 60 Amp High Current Return Lead 6 ft. (1.8m) Input Power Cable USA Fuse 12 Amp |
| Options available | Rear Outputs USB Port Display Voltage Drop |
| Memories | 5 |
| Remote I/O | Input: Test, Reset, Interlock Output: -Pass, Fail, Test-in-Process Hardware Interlock: – a relay on the high voltage output opens when the Interlock signal is disabled |
| Voltage Drop Display (Optional) | Display the voltage drop across the circuit instead of the resistance measurement |
| Voltage Limit Settings | 0.00 to 9.00 VAC Resolution: 0.01 V Accuracy: ± (2% of setting + 0.02 V) |
| Offset Limit Settings | 0.00 to 6.00 VAC Resolution: 0.01 V Accuracy: ± (2% of setting + 0.02 V) |
| Security | Option to turn On or Off, when On you can switch between two security levels: 1) Run – Operator can only run a test. No ability to change memory locations or edit test parameters 2) Mem – Operator can run a test and change memory locations. No ability to edit test parameters |
| Safety Mark | CE/cTUVus |
| Dimensions | (W x H x D) (16.93 x 5.20 x 11.81)in. (430 x 132 x 300mm) |
| Weight | 20.25 lbs (9 kg) |
| For detailed specifications please see: SCI 266 Data Sheet | |
